How to Increase Airflow in Greenhouses: Optimizing Ventilation and Circulation Systems
In modern agricultural production, greenhouses serve as a crucial form of protected cultivation, where internal environmental control directly impacts crop growth quality and yield. Among these factors, optimizing and increasing airflow is a key aspect of greenhouse management. This article explores various methods to enhance airflow in greenhouses and their significance.
Why Increase Airflow in Greenhouses?
Greenhouses are relatively enclosed environments that lack the natural air movement found outdoors. Insufficient airflow can lead to several issues:
Uneven temperature distribution: Warm air accumulates at the top, creating significant temperature gradients with cooler conditions at plant level.
Excessive humidity: Transpiration moisture cannot escape efficiently, increasing risks of fungal diseases.
Uneven CO₂ distribution: Photosynthesis-essential carbon dioxide becomes unevenly distributed in stagnant air.
Pest and disease proliferation: Stagnant, humid conditions create ideal breeding environments for pathogens and pests.
Research shows that proper air circulation can reduce temperature variations by 3-5°C while maintaining optimal relative humidity (typically 60-80%), significantly improving crop yield and quality.
Primary Methods to Increase Greenhouse Airflow
2.1 Natural Ventilation System Design
The most energy-efficient ventilation method includes:
Roof vents: Utilizing thermal buoyancy with openable roof windows
Side vents: Installing openable side windows to create horizontal airflow
Combination ventilation: Operating both roof and side vents simultaneously to enhance "stack effect"
Design considerations should account for prevailing winds, with total vent area comprising 15-25% of floor space. Sawtooth and Venlo-type greenhouses typically offer superior natural ventilation due to their roof structures.
2.2 Mechanical Ventilation Systems
When natural ventilation proves insufficient:
Negative pressure systems: Exhaust fans at one end with intake openings at the opposite side
Positive pressure systems: Forced air injection using blower fans
Hybrid systems: Combining both pressure strategies
Particularly suitable for large multi-span greenhouses or harsh climates, fan capacity should achieve 0.75-1 air changes per minute (summer) or 0.1-0.3 air changes per minute (winter).

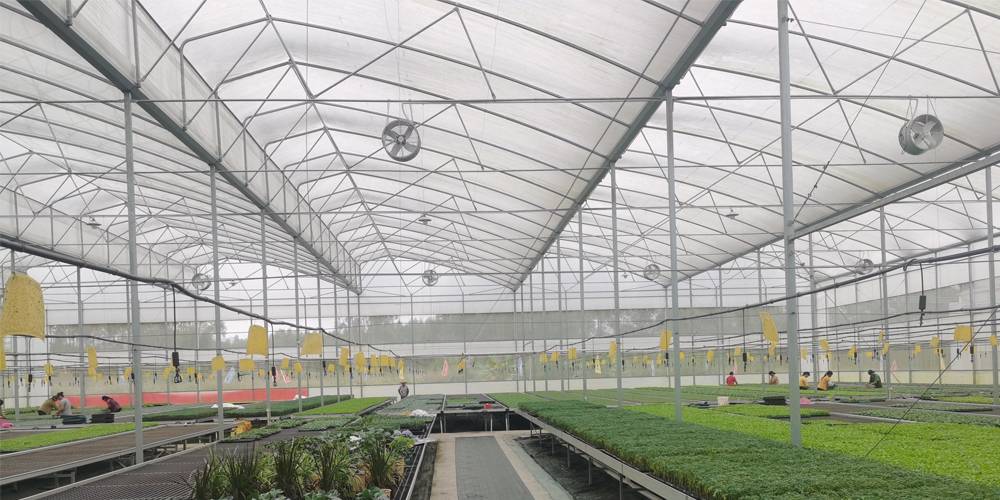

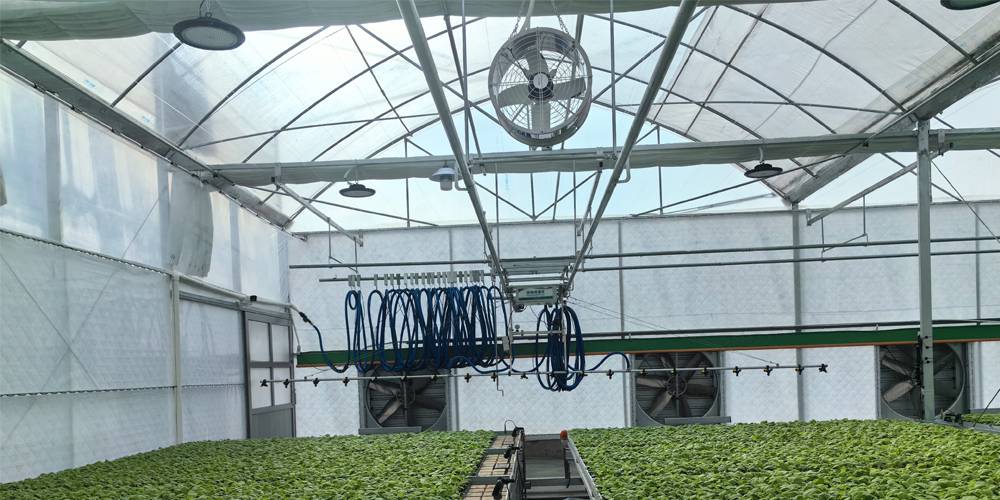

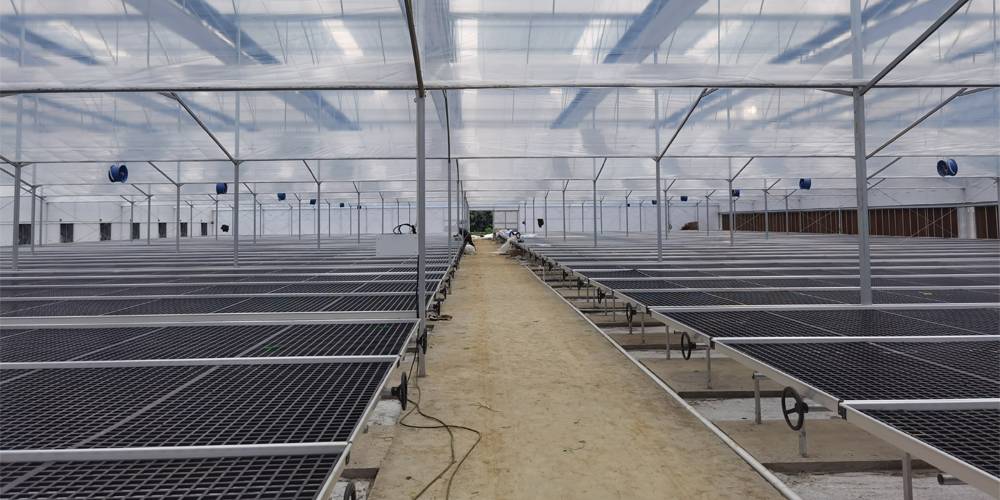

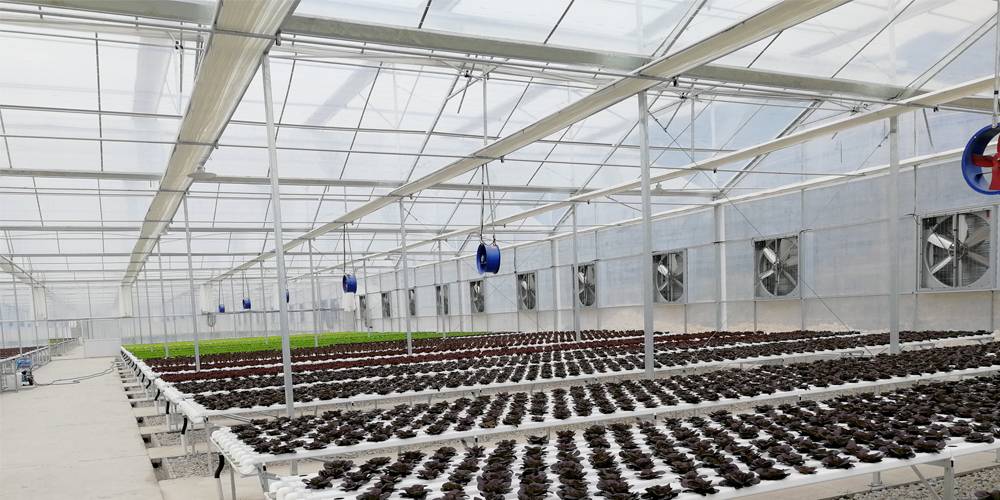

2.3 The Critical Role of Greenhouse Circulation Fans
These Greenhouse Circulation Fans serve core functions for internal air movement:
Eliminating thermal stratification for uniform temperature distribution;
Enhancing leaf boundary layer gas exchange, improving transpiration and photosynthesis;
Reducing humidity by minimizing leaf wetness duration;
Ensuring even distribution of agrochemicals.
Greenhouse Circulation Fans Installation guidelines include:
Spacing at 10-15 times fan diameter;
Mounting slightly above crop canopy;
Creating circular airflow patterns without dead zones;
Power selection typically 0.5-2W/m³.
Greenhouse circulation fans can operate independently or complement ventilation systems. During winter, they maintain air movement without significant heat loss when vents are closed.
2.4 Pad-and-Fan Cooling Systems
This summer solution combines increased airflow with evaporative cooling:
Exhaust fans remove heated air;
External air cools through wet pads before entering;
Cooled air absorbs heat before being exhausted.
Design specifications:
Pad area should cover 15-20% of cross-sectional area;
Maximum 60m distance between pads and opposing fans;
Water flow rate ≈6L/min per linear meter of pad;
Air velocity through pads maintained at 1.2-1.8m/s.
2.5 Internal Layout Optimization
Structural considerations affecting airflow:
Planting beds aligned with prevailing winds;
Tall crops shouldn't obstruct ventilation openings;
Equipment placement avoiding airflow blockages;
Using high-transmission, anti-drip glazing materials;
Seasonal Airflow Management Strategies.
Summer Operations
Focusing on cooling and dehumidification:
Maximize natural ventilation openings;
Operate all fans and cooling systems;
Run greenhouse circulation fans at full capacity;
Deploy shade screens when necessary.
Winter Operations
Balancing ventilation and heat retention:
Ventilate during warmer midday periods;
Maintain reduced but continuous circulation fan operation;
Implement intermittent ventilation cycles (10-15 minutes);
Consider heat exchangers for energy recovery.
Transition Season Adjustments
Addressing large diurnal temperature swings:
Modulate vent openings according to temperature differentials;
Implement automated control systems;
Coordinate with movable shade systems.
Smart Monitoring and Control
Modern greenhouses increasingly adopt intelligent systems:
Sensor networks: Multi-point monitoring of temperature, humidity, CO₂, and airflow
Actuators: Automated control of vents, fans, and other equipment
Control algorithms: Precision adjustments based on crop and environmental models
Smart systems can automatically adjust greenhouse circulation fans speeds, achieving 15-30% energy savings while increasing yields by over 10%.
Conclusion
Enhancing greenhouse airflow requires integrated consideration of structure, climate, crop needs, and economics. Strategic combination of natural ventilation, mechanical systems, and greenhouse circulation fans—supported by smart controls—creates stable, uniform growing environments. As technology advances, future ventilation systems will become more energy-efficient, precise, and intelligent, providing stronger support for protected agriculture development.
