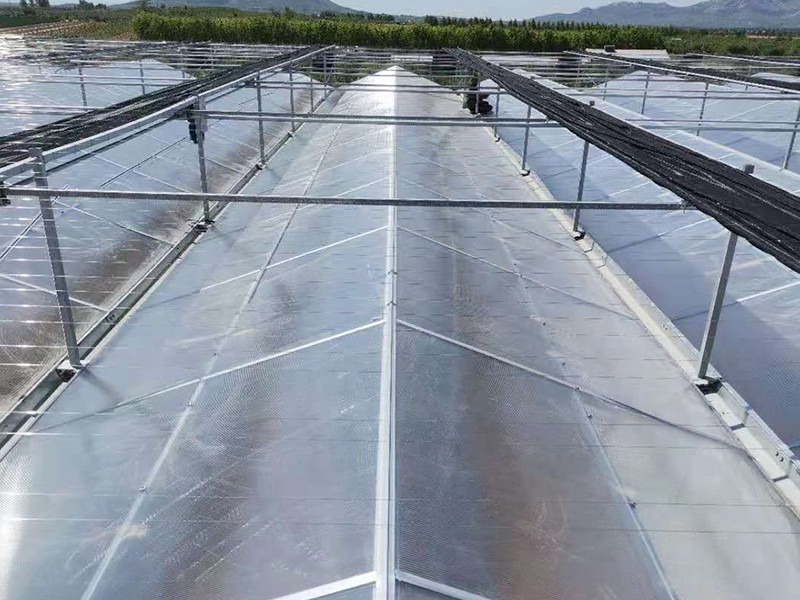

The venlo polycarbonate greenhouse is an advanced facility agricultural building. The polycarbonate greenhouse’s structural form is based on the spire - type greenhouse design. The polycarbonate green house frame is mainly constructed with hot-dip galvanized steel, and the covering material is polycarbonate (PC) board.
Composition of venlo polycarbonate greenhouse:
Greenhouse frame
The polycarbonate greenhouse frame is made of hot-dip galvanized steel frame, which will not rust in high humidity environment for 25 years, and the project uses square tubes, U-shaped steel, C-shaped steel and other iron plates, except stainless steel products. All surfaces are treated with rust-proof hot-dip galvanizing, with a single side of 350g/m' or more.
Covering material

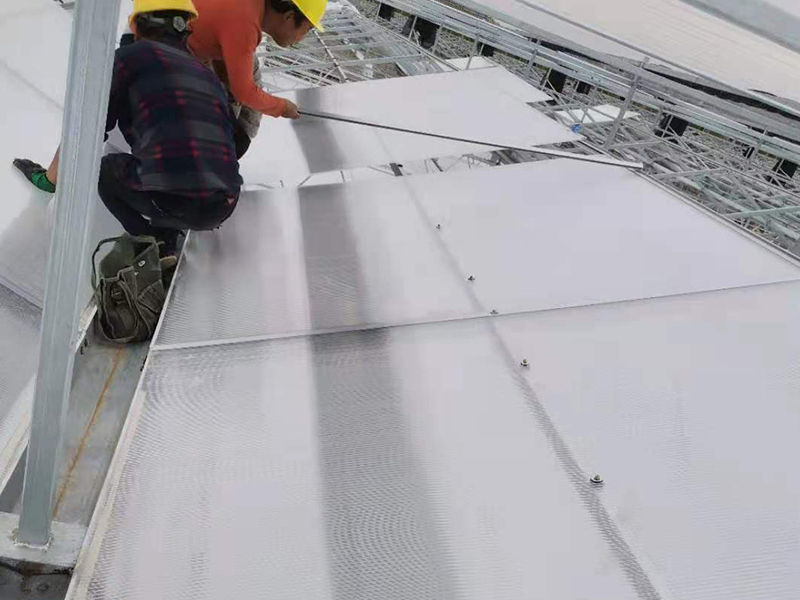

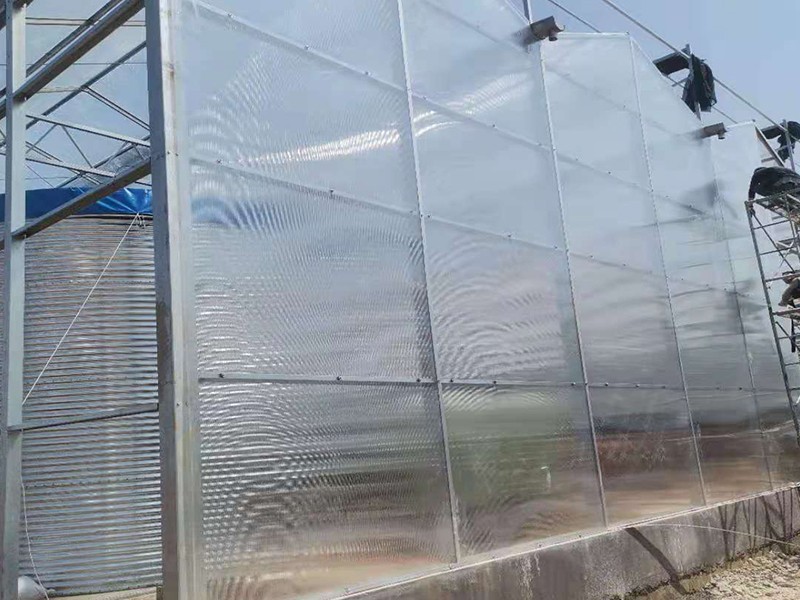

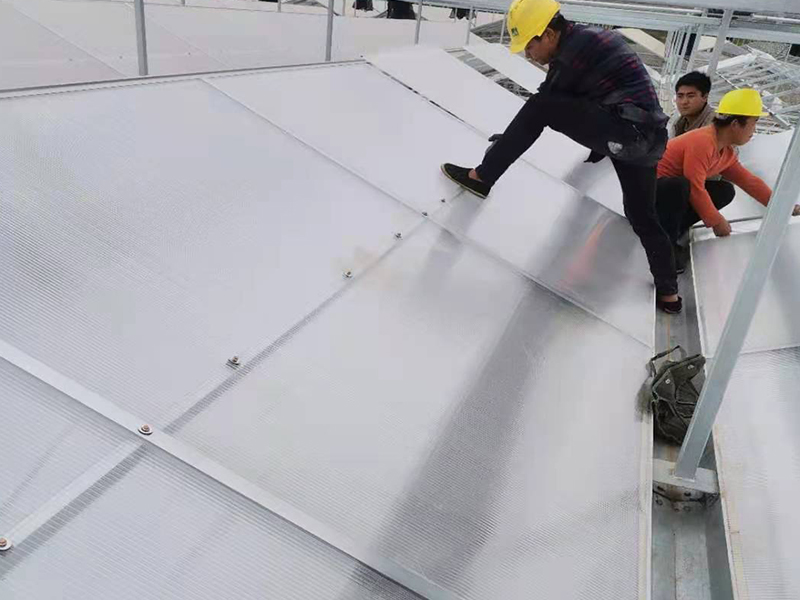

The polycarbonate greenhouse covering material is made of 8mm high quality PC board, special aluminum alloy and sealing.
Climate Control Systems
Polycarbonate greenhouse internal and external shading systems , fan and water curtain automatic cooling system, internal insulation system, heating system, control system, movable seedbed, irrigation system, etc. can be equipped according to customer requirements .
Existing polycarbonate green house size or custom size
Serial number | project | Size (m) |
1 | Span Width | 8/9.6m/12m |
2 | Bay spacing | 4m/5m |
3 | Gutter height | 4m/6m |
4 | Ridge height | 5m/7m |
Characteristics of venlo polycarbonate greenhouse:
Venlo polycarbonate greenhouse has excellent lighting and thermal insulation performance:
Polycarbonate panels have a high light transmittance, which can provide sufficient light inside the polycarbonate green house, and twin wall polycarbonate greenhouse also has good thermal insulation properties.
Venlo twin wall polycarbonate greenhouse has good mechanical properties:
PC boards have excellent impact resistance and twin wall polycarbonate greenhouse can withstand external impacts of a certain intensity, reducing the possibility of damage to the covering material.
Twinwall polycarbonate greenhouse has good ventilation and air circulation:
Twinwall polycarbonate greenhouse is equipped with top and side vents to create efficient air convection.
Corrugated polycarbonate greenhouse has high degree of customizability
Corrugated polycarbonate greenhouse can be customized according to different crop types, planting scales, geographical environments and climatic conditions.
Uses of venlo polycarbonate greenhouse:
Corrugated polycarbonate greenhouse is used for vegetable planting:
Corrugated polycarbonate greenhouse is suitable for growing various vegetables, including leafy vegetables (such as lettuce and spinach), fruiting vegetables (such as tomatoes and cucumbers) and root vegetables.
Twinwall polycarbonate greenhouse is used for flower cultivation:
Twinwall polycarbonate greenhouse is an ideal place for flower cultivation, Twinwall polycarbonate greenhouse providing precise temperature, light and humidity control to meet the needs of flower growth and flowering.
Polycarbonate green house is used for seedling production:
The polycarbonate green house indoor temperature, humidity, light and other factors can be precisely controlled to ensure that the seeds can germinate smoothly and the seedlings can grow healthily.
